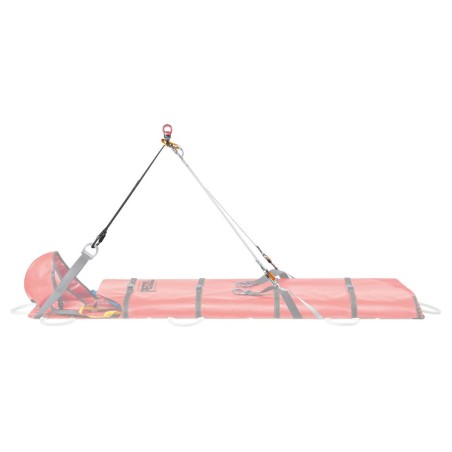

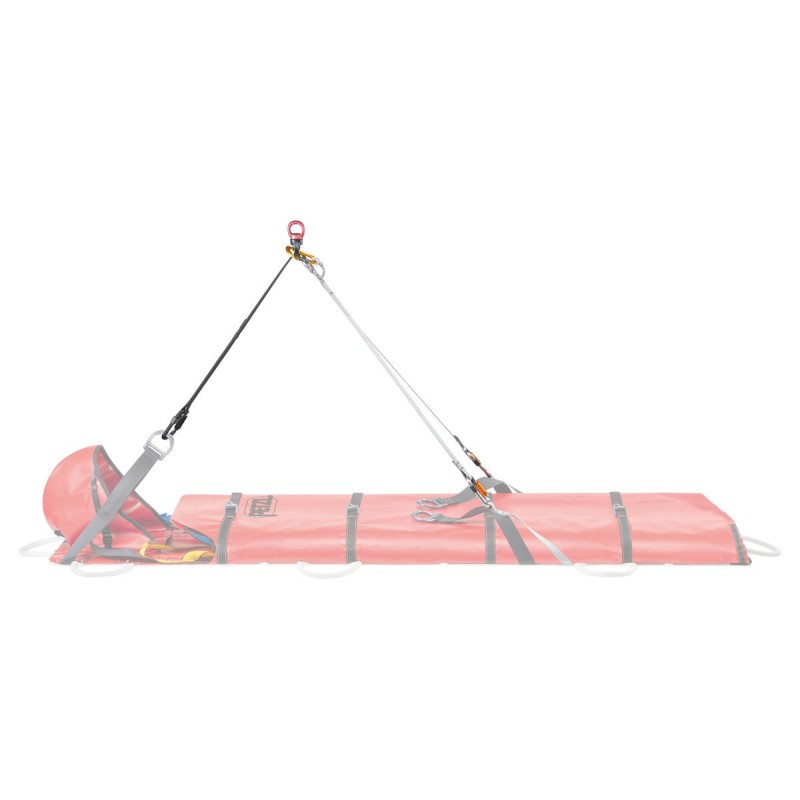

PETZL STEF – Tilting Device for NEST Rescue Litter
The PETZL STEF is a tilting device designed to connect the three attachment points of the Petzl NEST rescue litter, allowing precise orientation of the stretcher during rescue operations. With integrated locking connectors and a swivel, it enables smooth adjustment of the litter position for safe casualty evacuation in technical rope rescue environments.
Buy Now The PETZL STEF Tilting Device is designed to work with the Petzl NEST rescue litter, enabling rescuers to easily adjust the orientation of the stretcher during technical rescue operations. The device connects to the three attachment points of the litter and allows it to be tilted depending on the terrain or rescue configuration.
The system includes three Am’D TRIACT-LOCK automatic locking connectors equipped with CAPTIV positioning bars, ensuring secure attachment to the litter’s connection points. A built-in swivel allows precise orientation and rotation of the stretcher, improving control during raising, lowering, or hauling operations.
A Sm’D connector locks the litter in a horizontal position when required, while color-coded markings help rescuers quickly identify the correct orientation during installation. Separate attachment points for Tyrolean systems allow rescuers to easily switch between vertical evacuation and horizontal transport modes.
The STEF device can also be used with a JAG SYSTEM haul kit, enabling precise control of the litter angle during rescue operations. This makes it an essential accessory for professional rescue teams working in confined spaces, caves, shafts, or industrial vertical environments.
Key Features
Tilting device designed specifically for the Petzl NEST rescue litter
Allows litter positioning horizontally, vertically, or at an angle
Three Am’D TRIACT-LOCK connectors for secure attachment
Integrated swivel for precise litter orientation
Sm’D connector locks the litter in horizontal position
Color-coded system simplifies correct installation
Compatible with JAG SYSTEM haul kit for precise angle adjustment
Technical Specifications
Brand: PETZL
Product Name: STEF
Product Type: Tilting Device for Rescue Litter
Material: Polyester, Aluminum
Weight: 640 g
Maximum Load: 150 kg
Certification: CE
Applications / Usage
Technical rope rescue operations
Confined space rescue
Industrial rescue systems
Cave and shaft rescue
Mountain and wilderness rescue
Evacuation using NEST rescue litter
Certifications & Standards
CE Certified professional rescue equipment
S059AA
